Model Z 2680
MODEL Z 2680

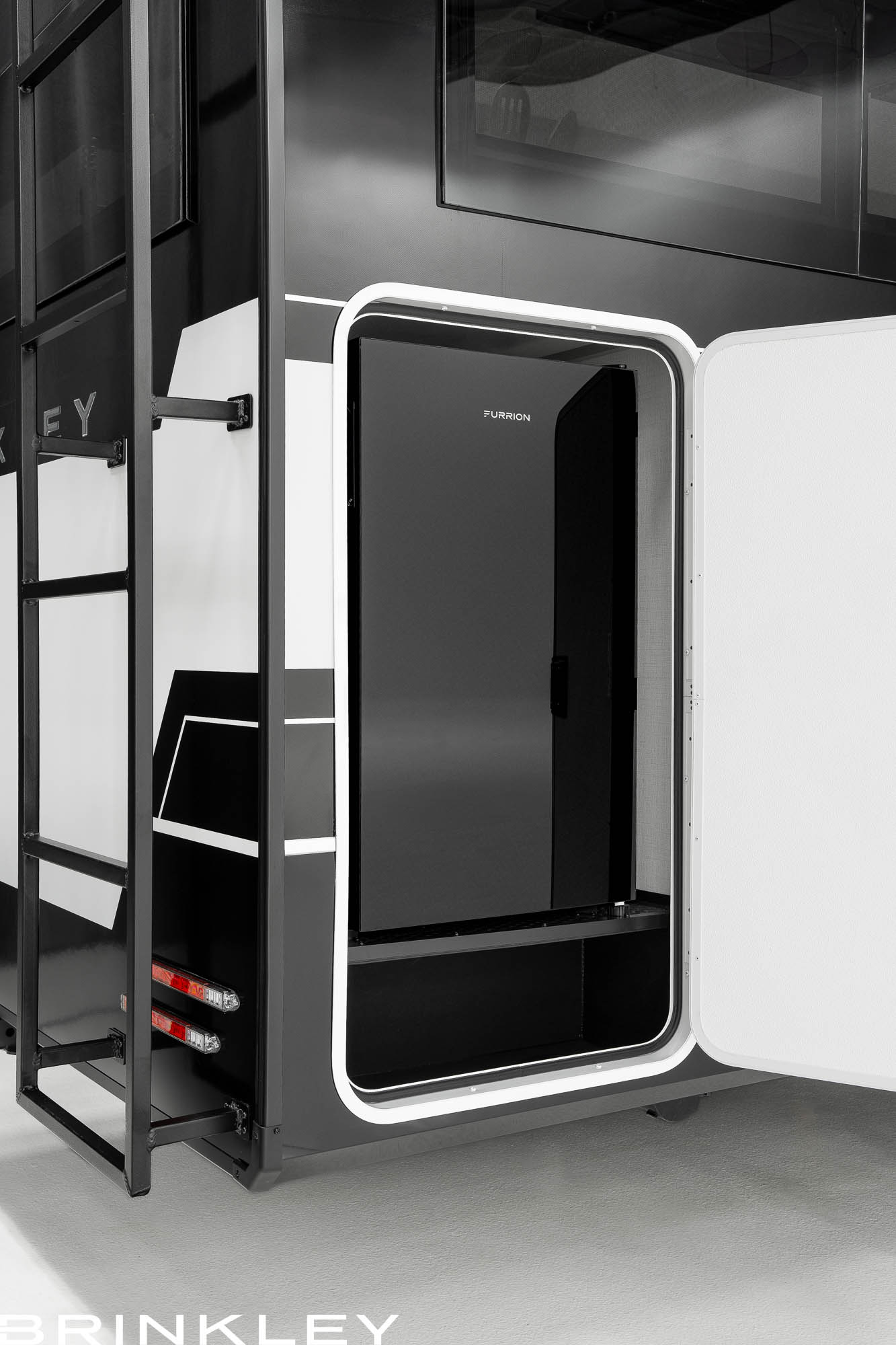

Rear kitchen, desk, W/D prep, outdoor fridge
Standard Run MSRP $110,627
Length
29′ 11″
Height
13′ 3″
UVW Weight
10,978 lbs.
Hitch Weight
1,952 lbs.
GVWR Weight
13,995 lbs.
VIRTUAL TOUR
GALLERY

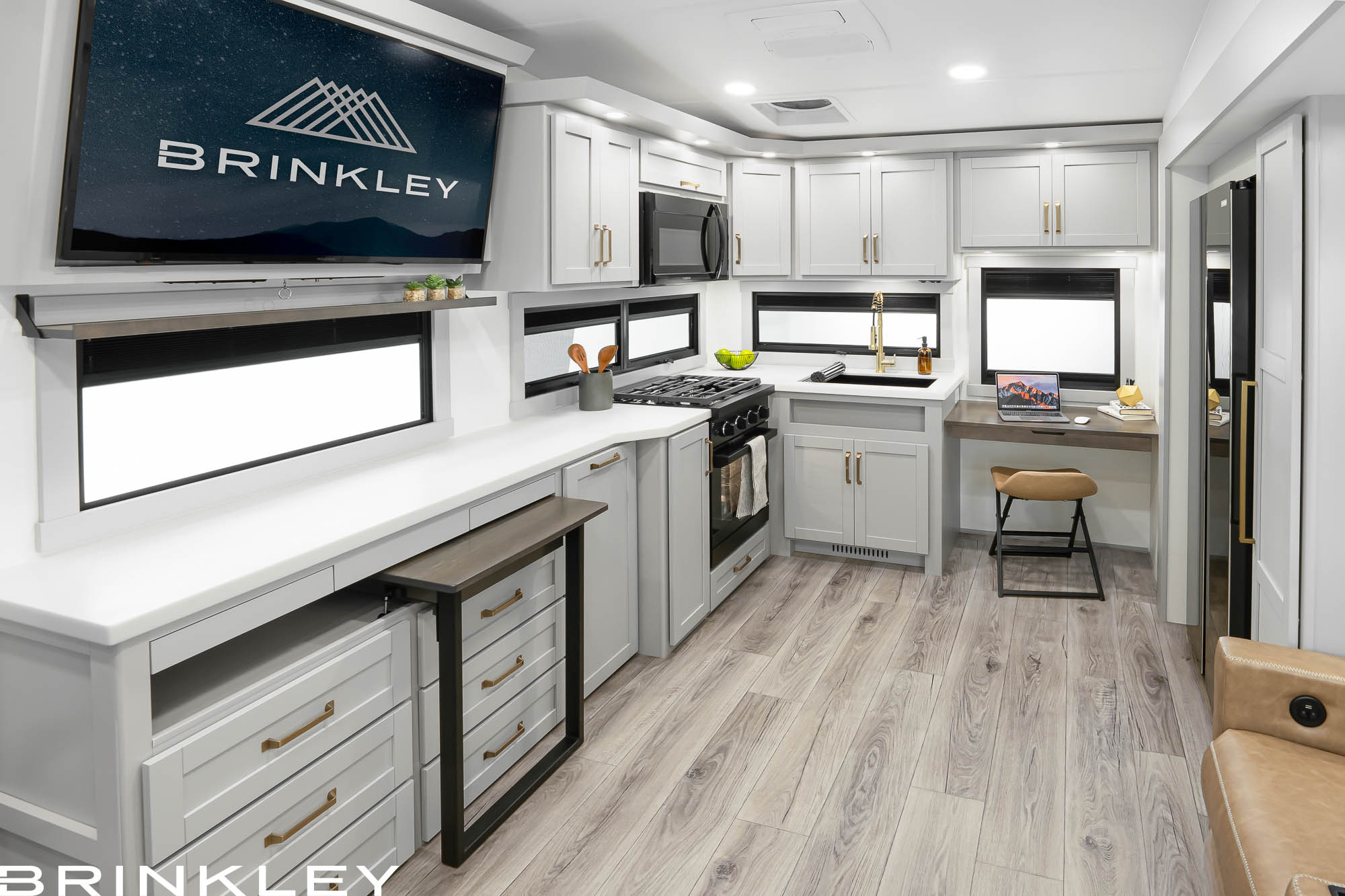

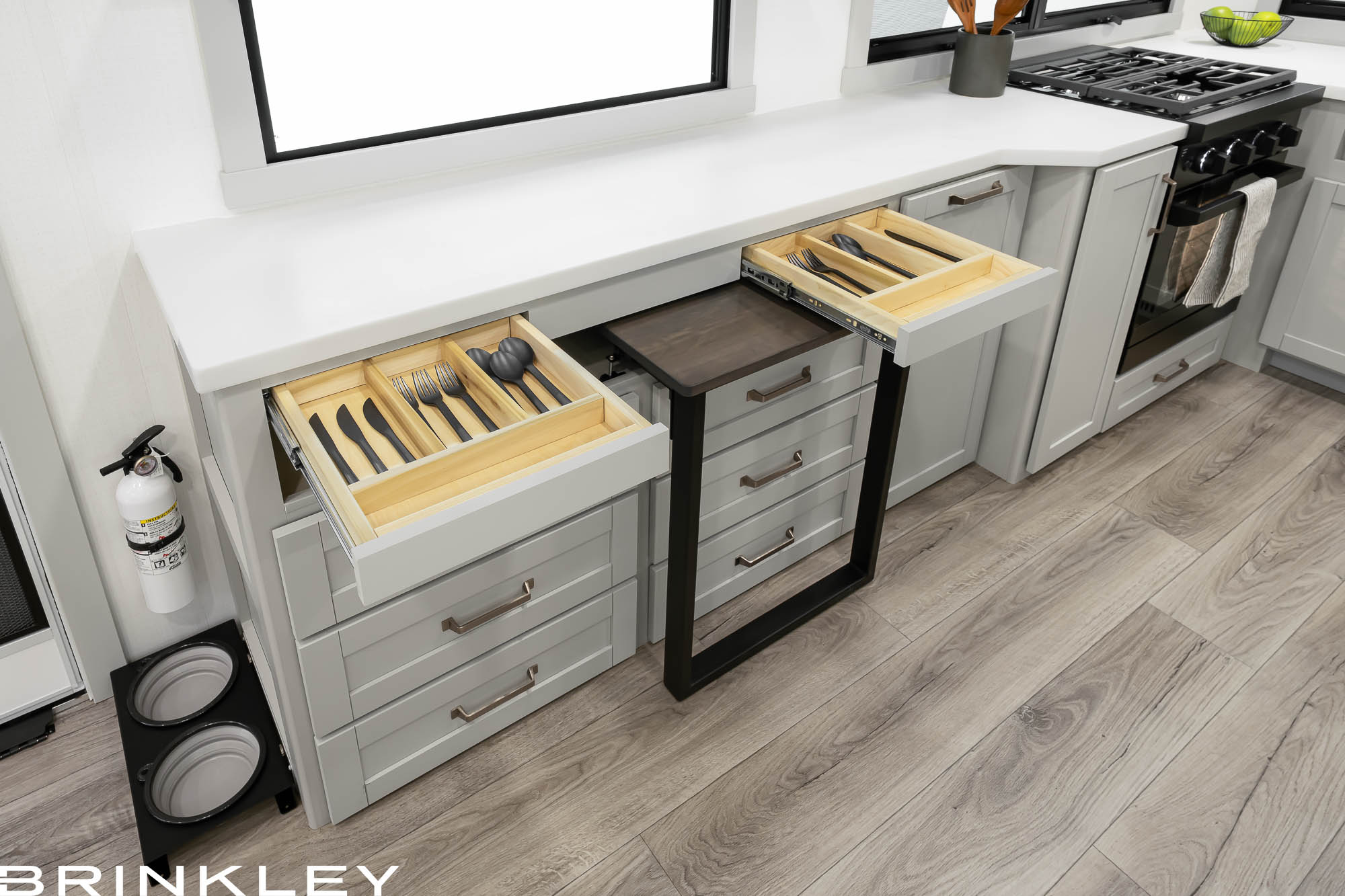

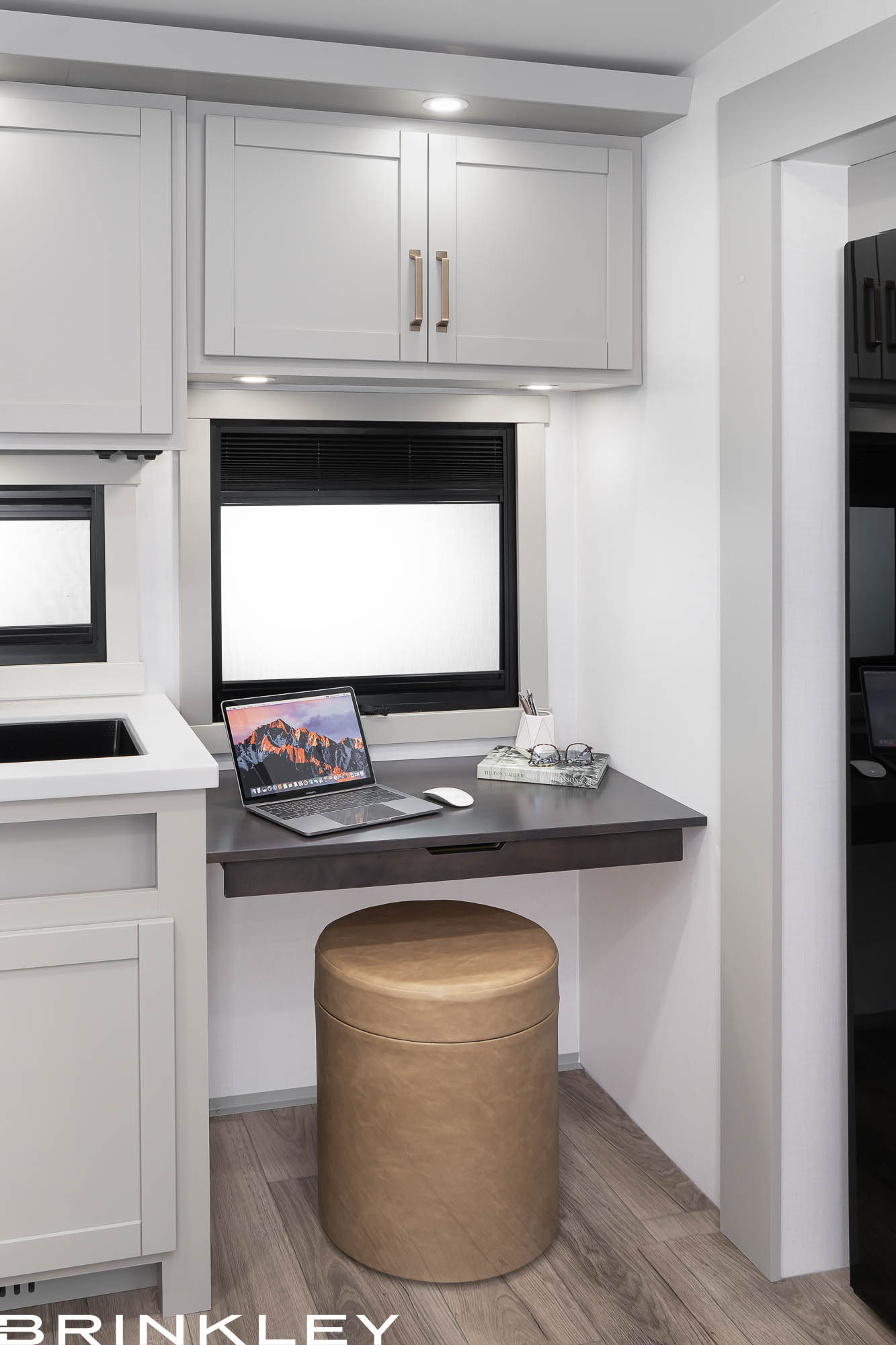

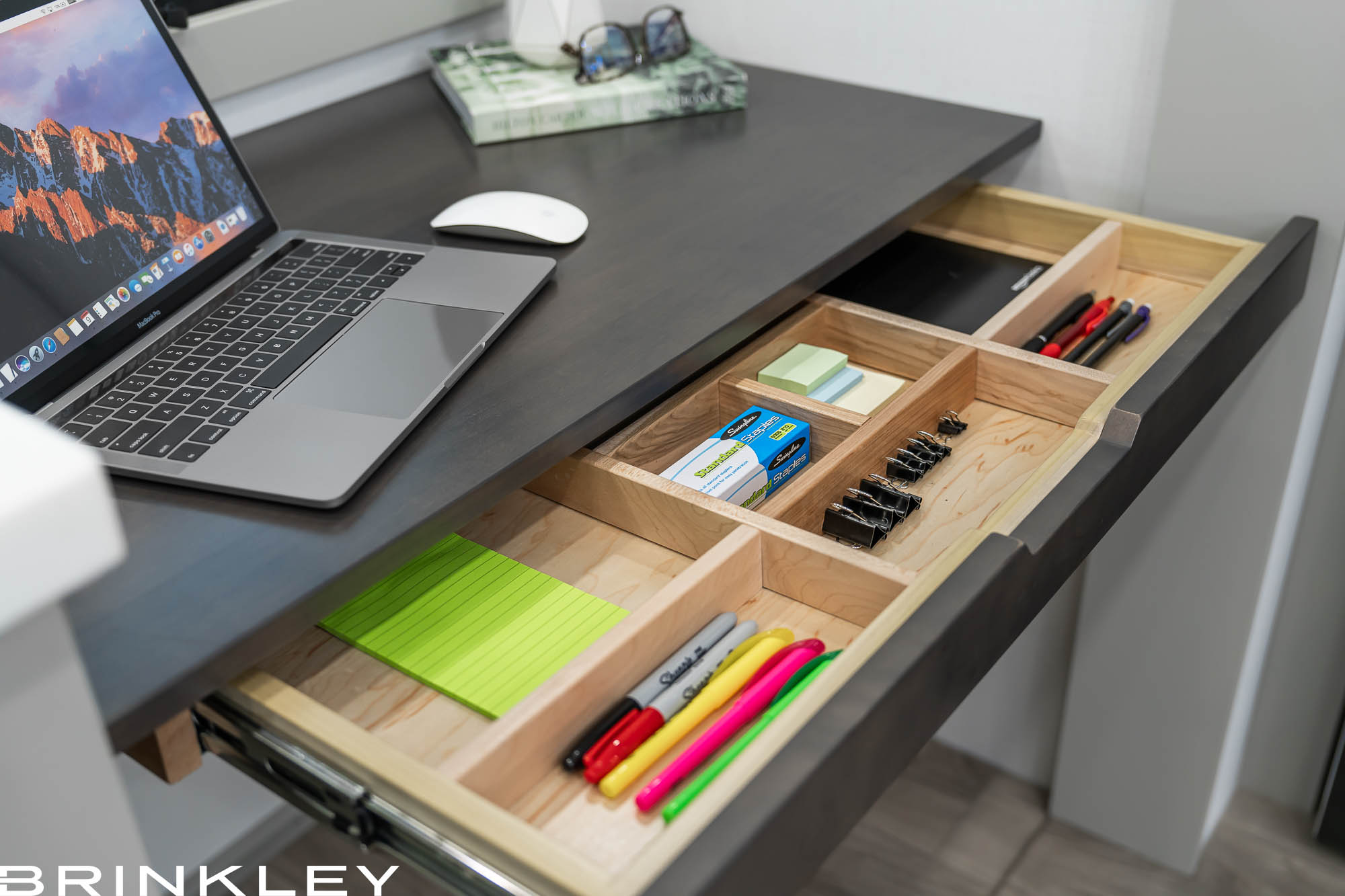

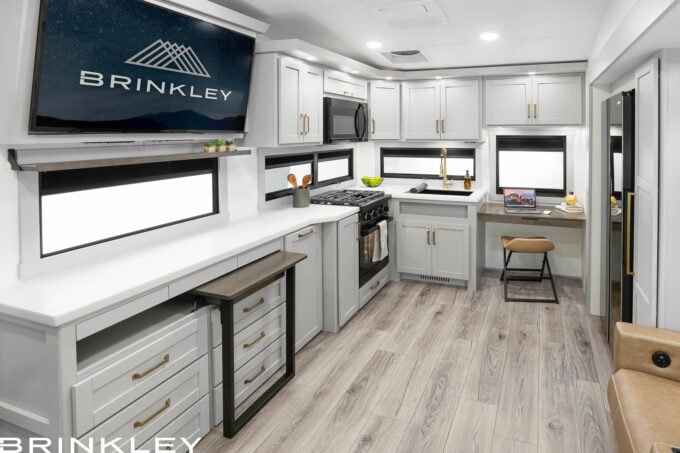

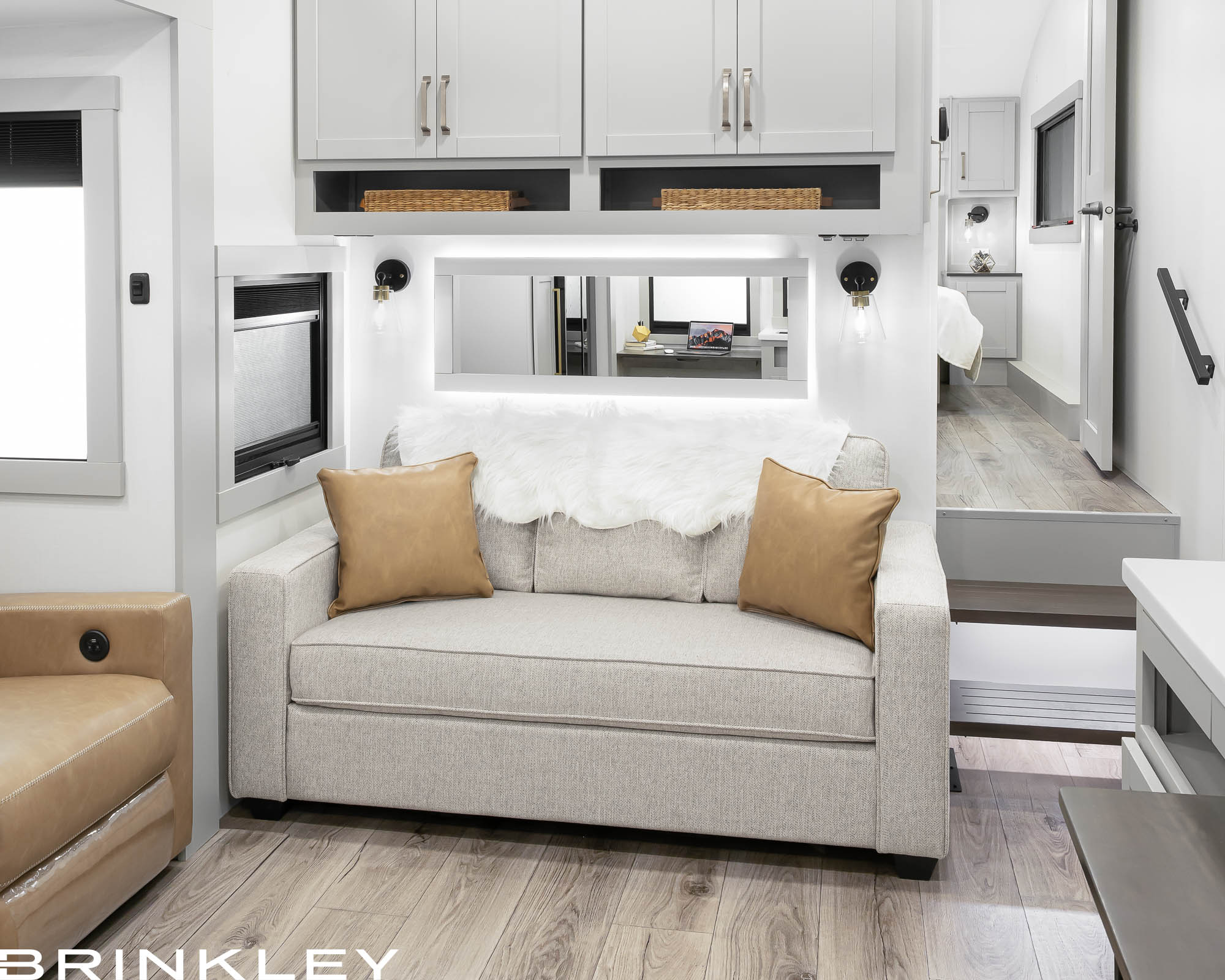

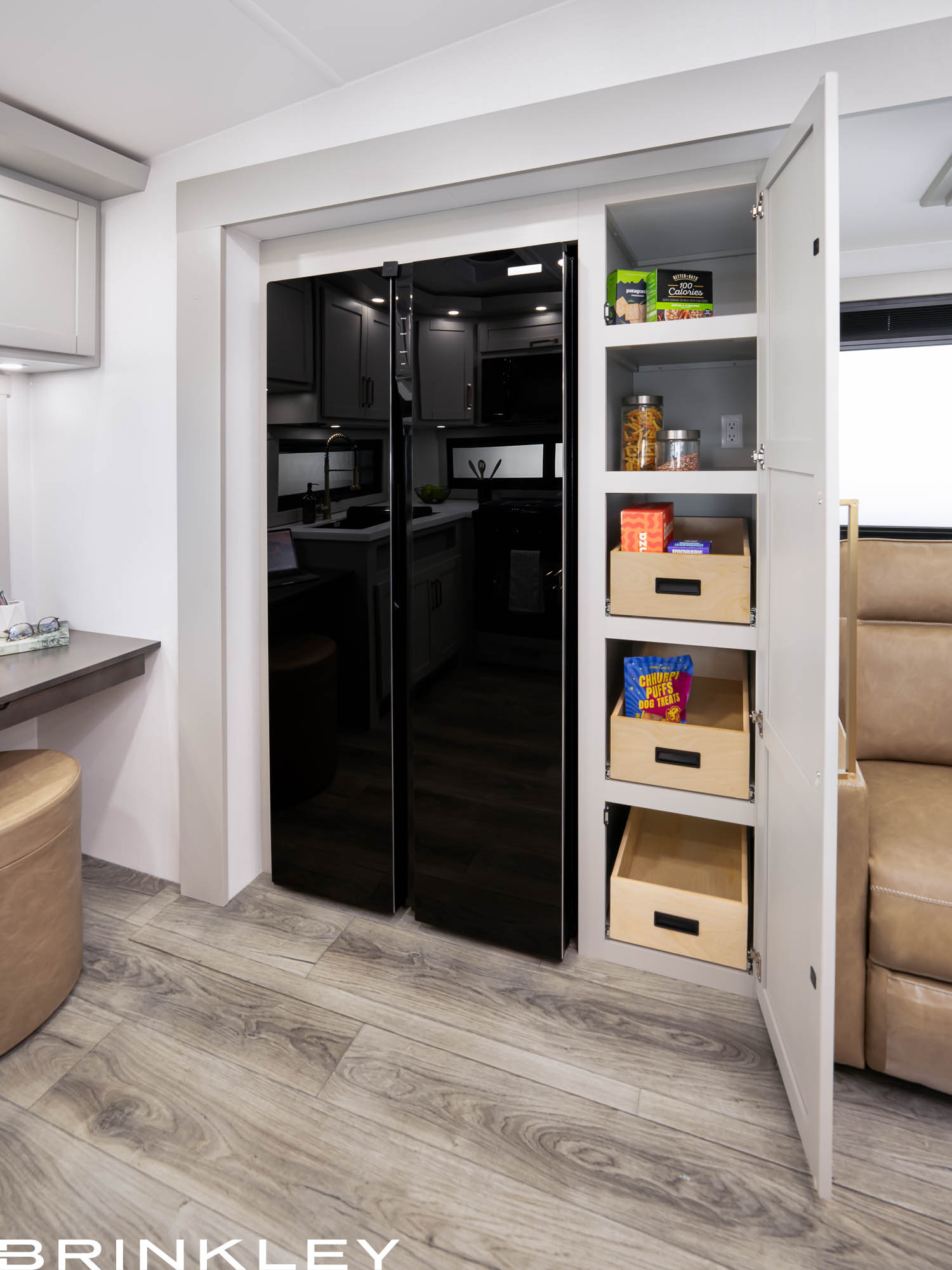

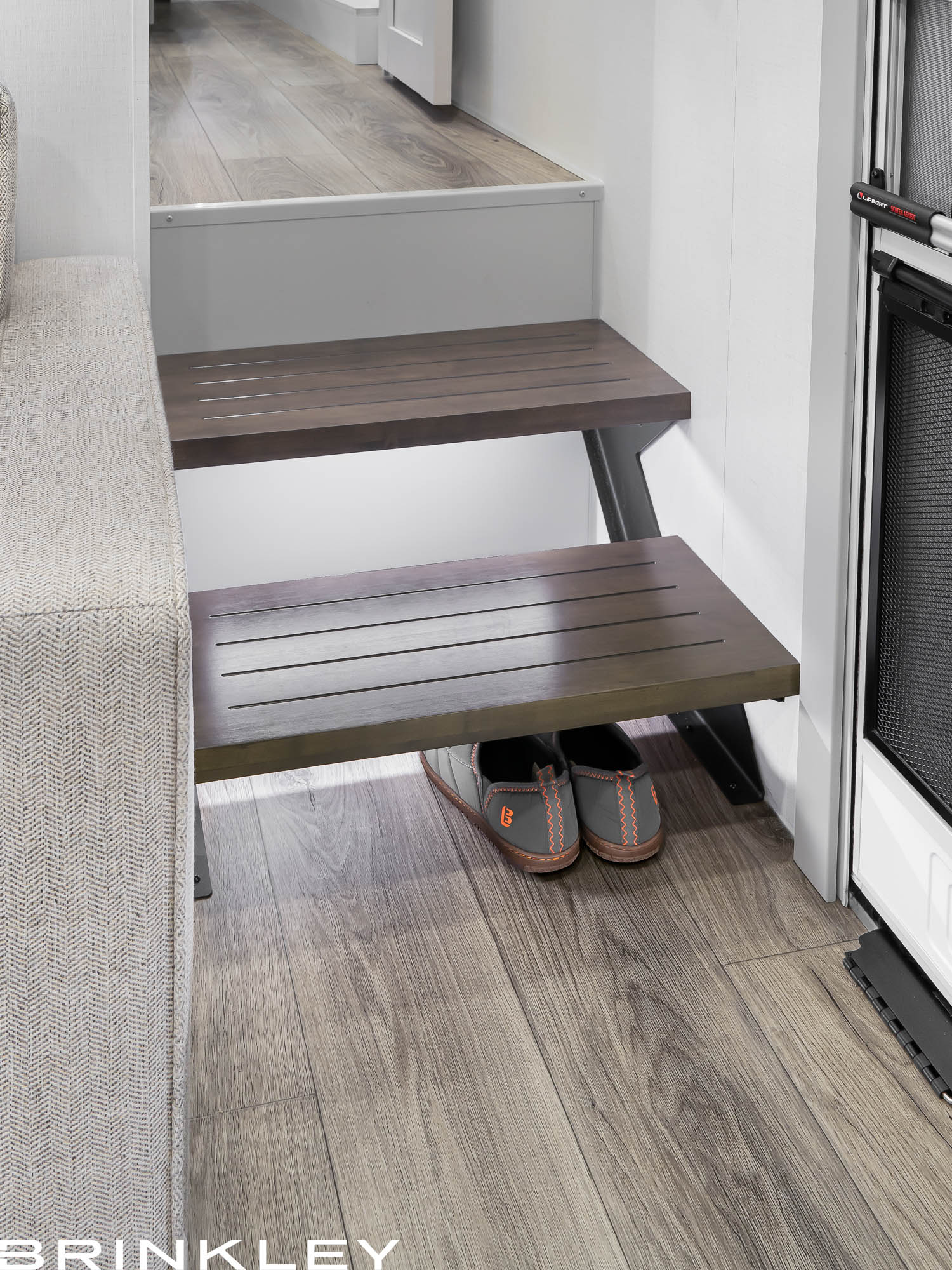

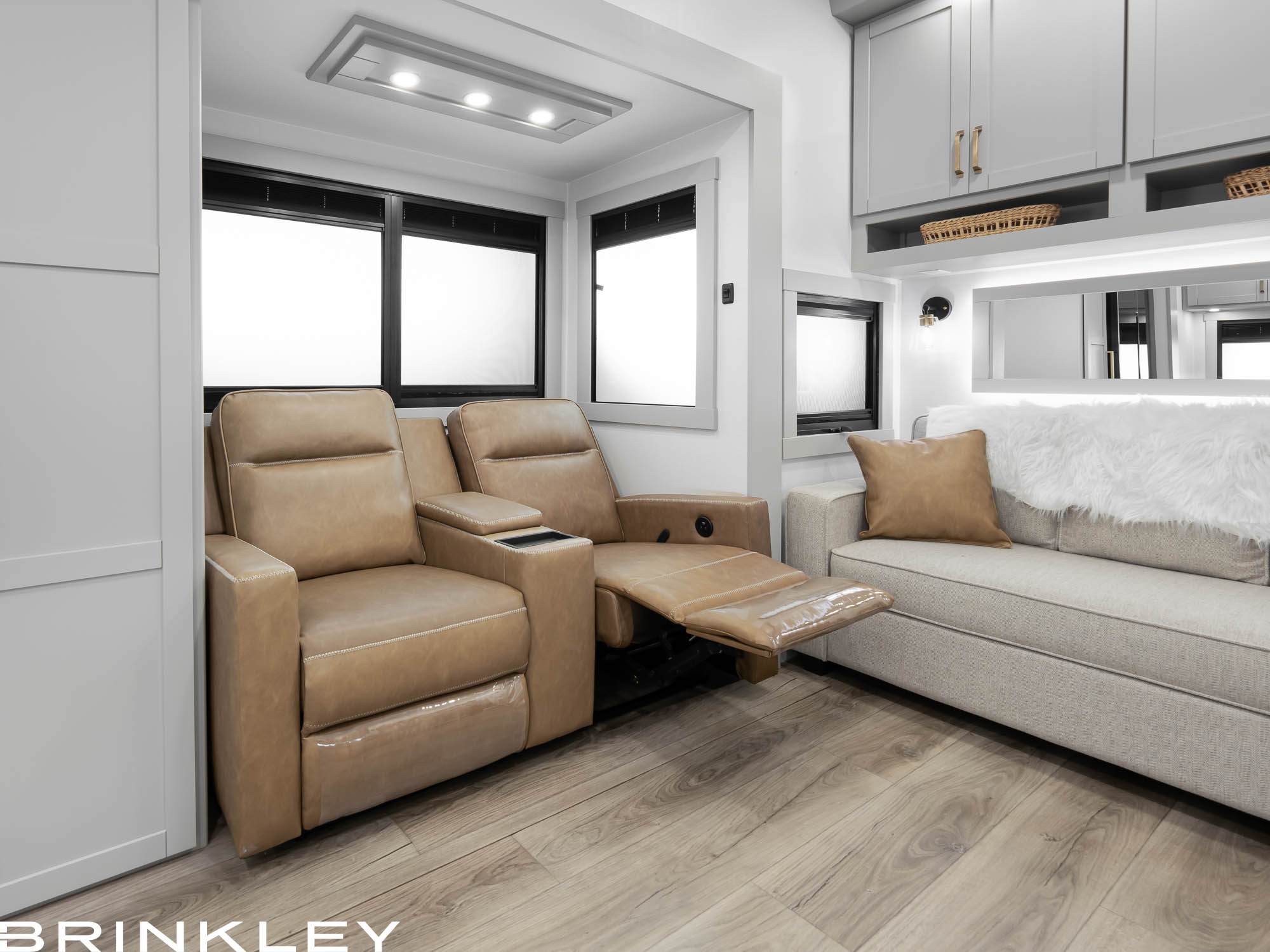

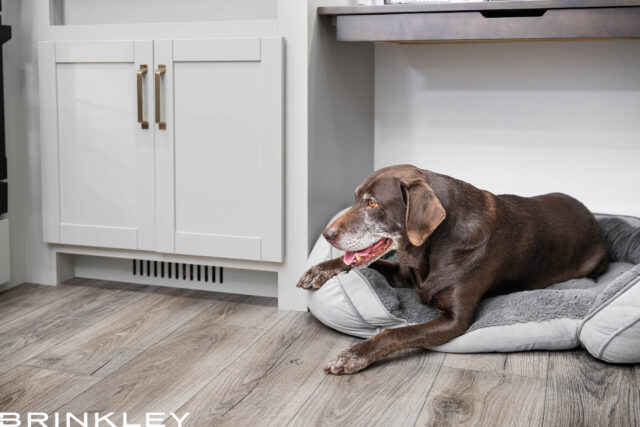

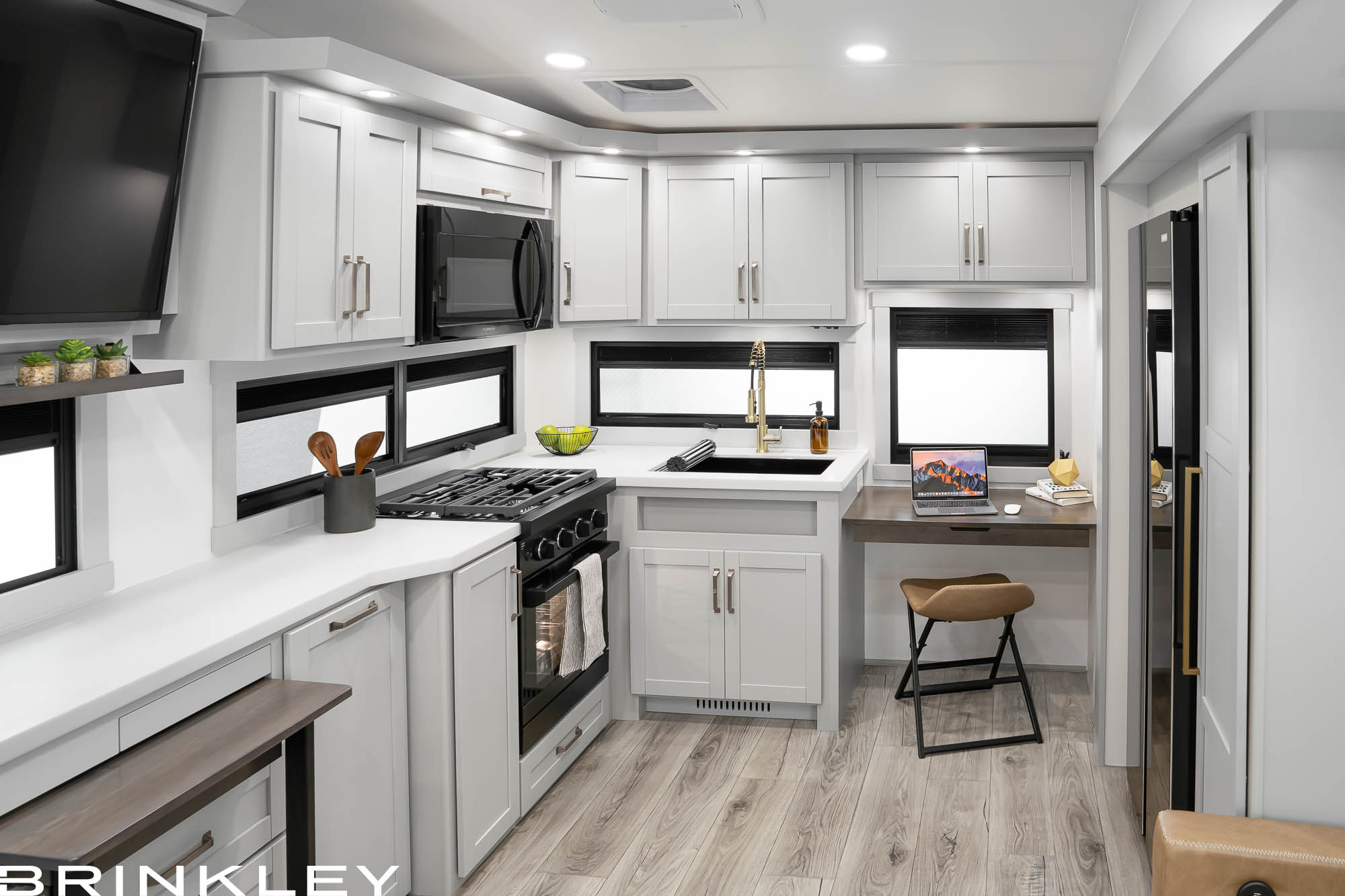

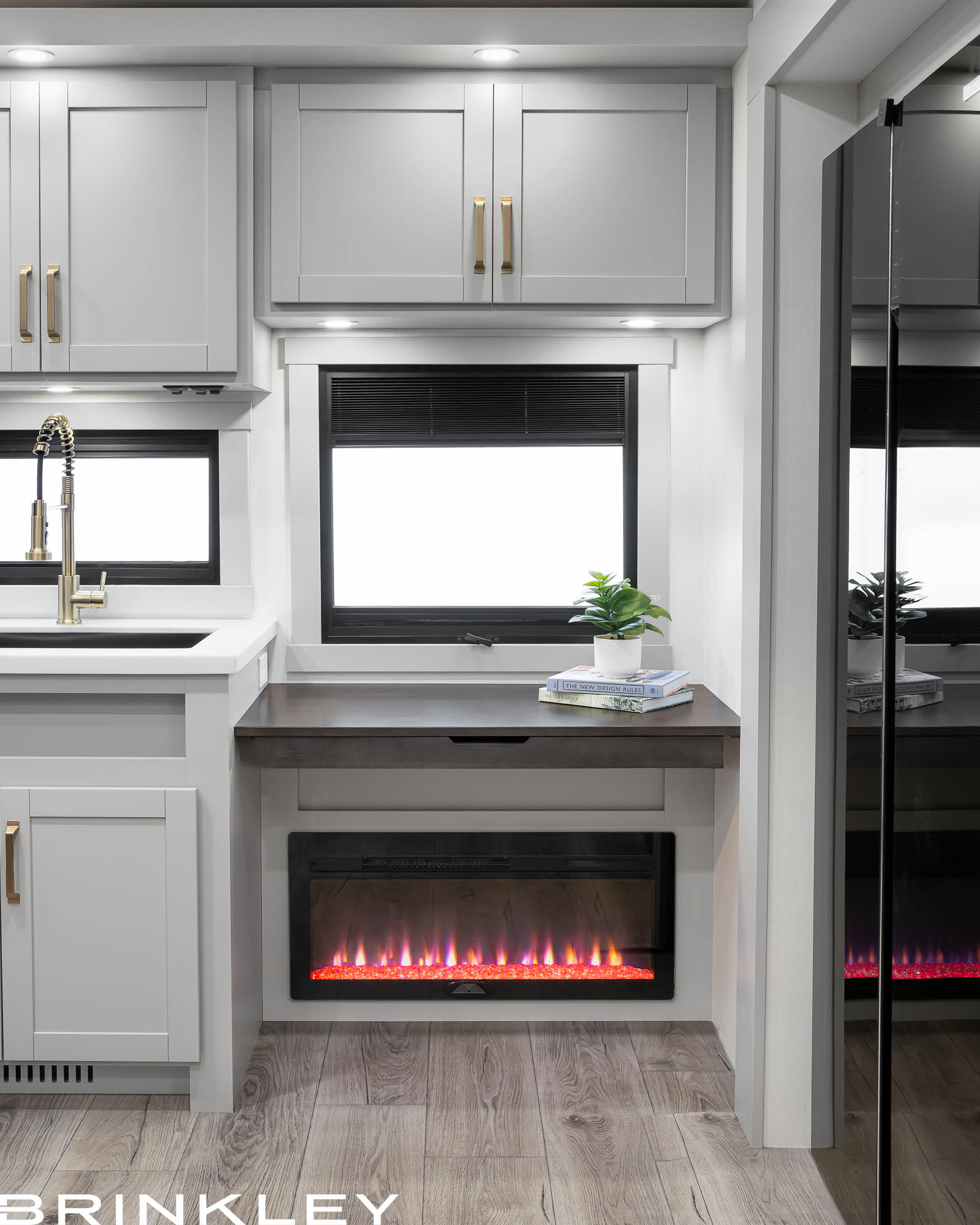

Z 2680 Interior

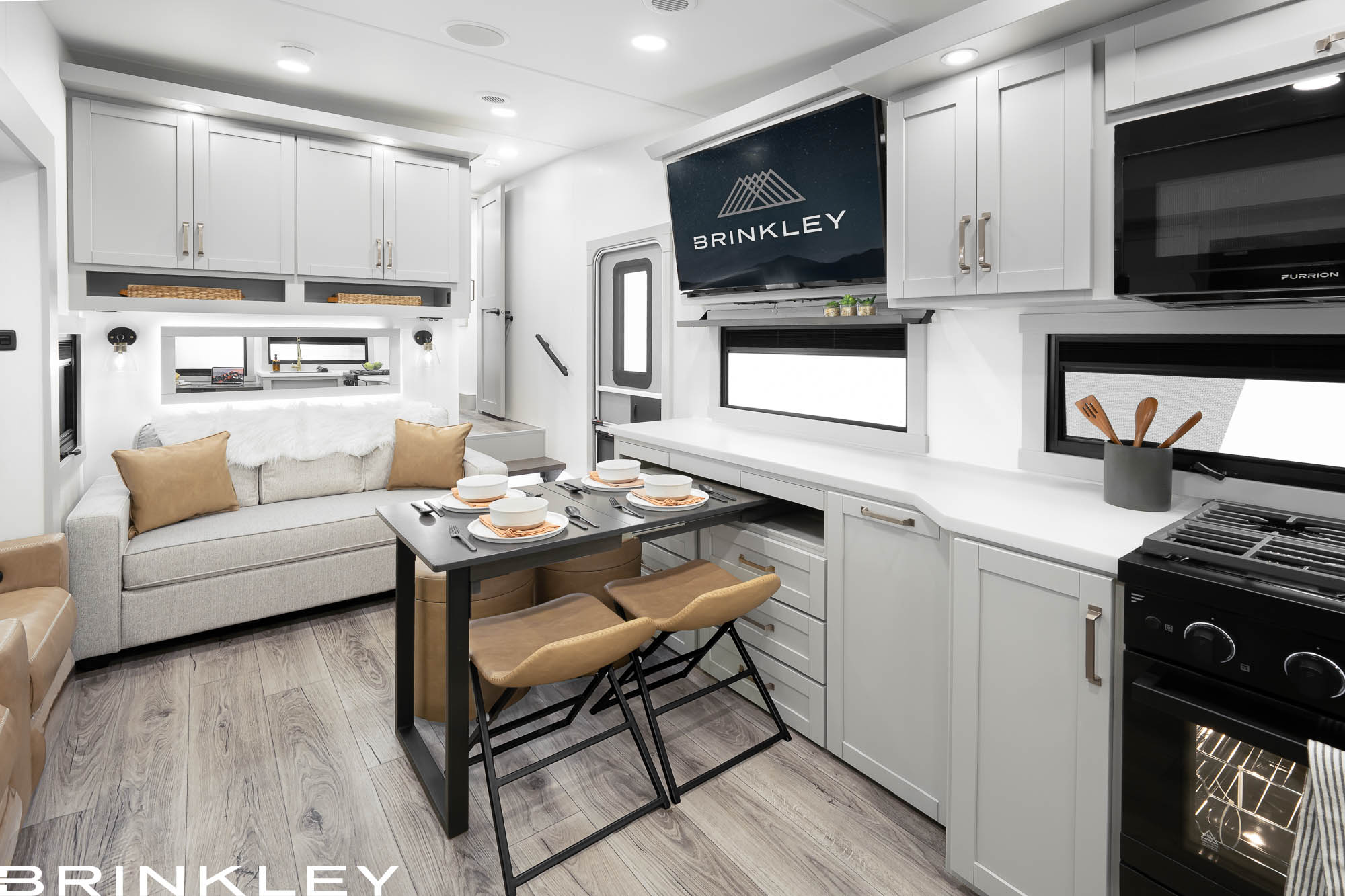

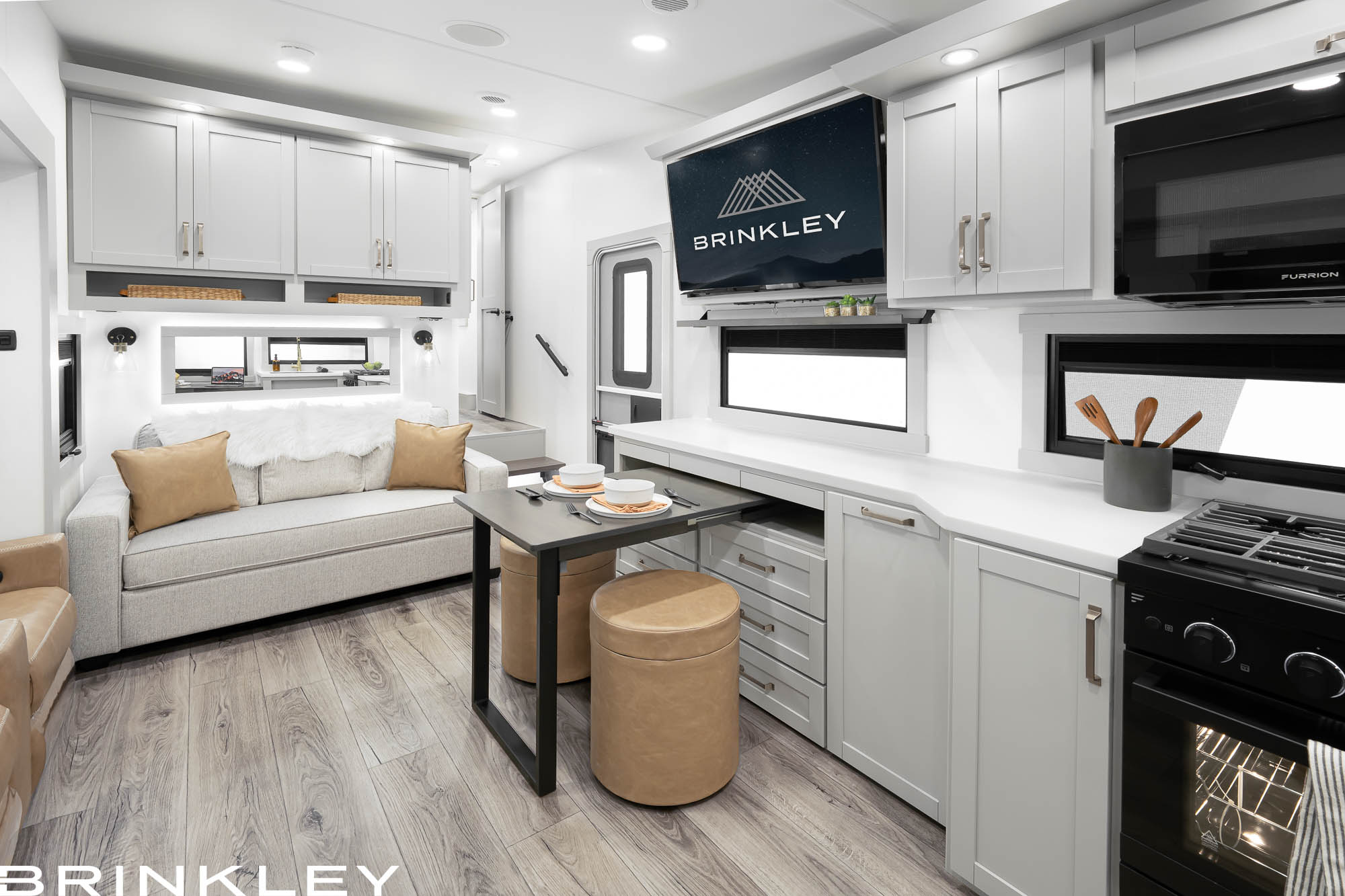

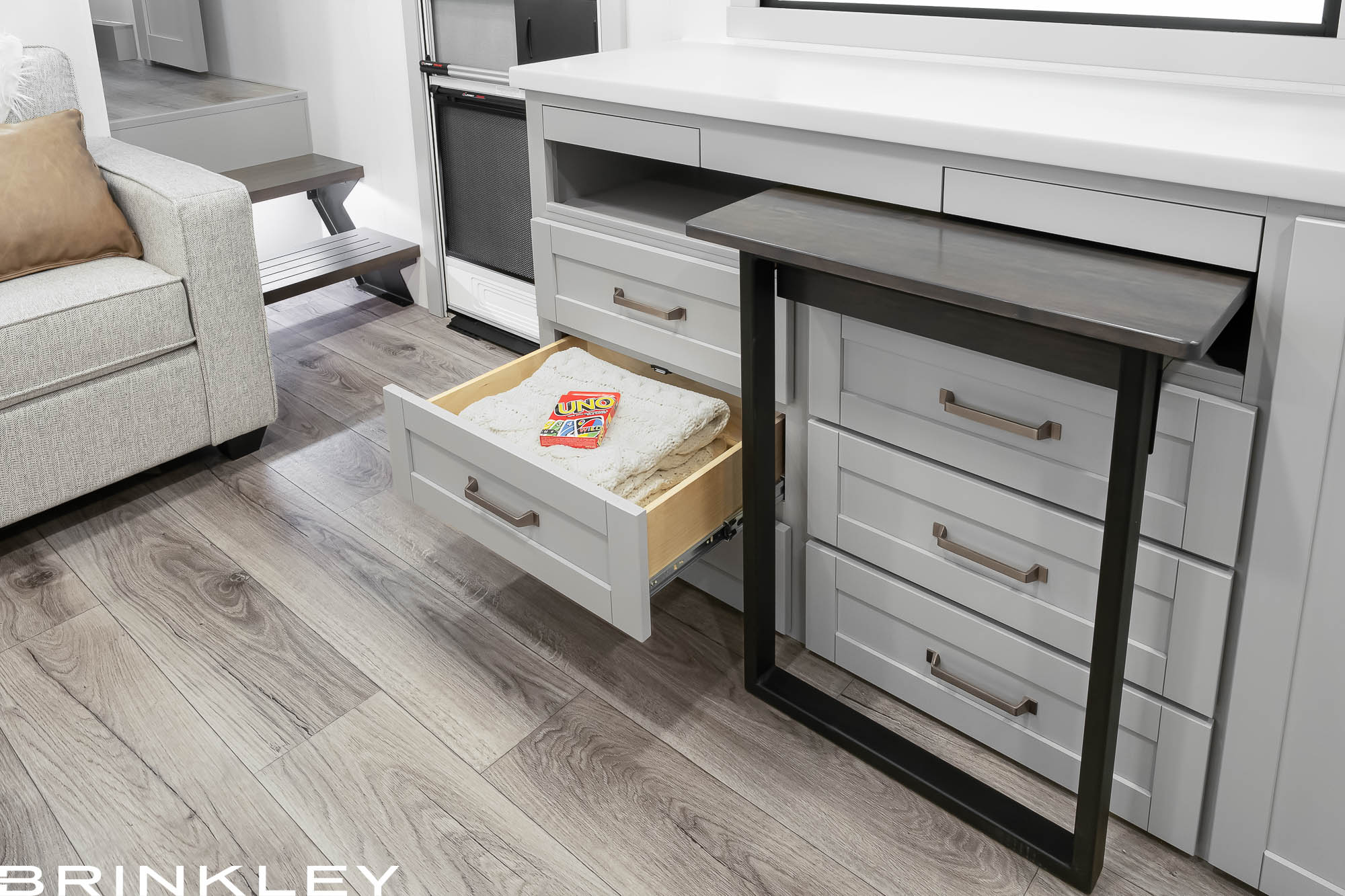

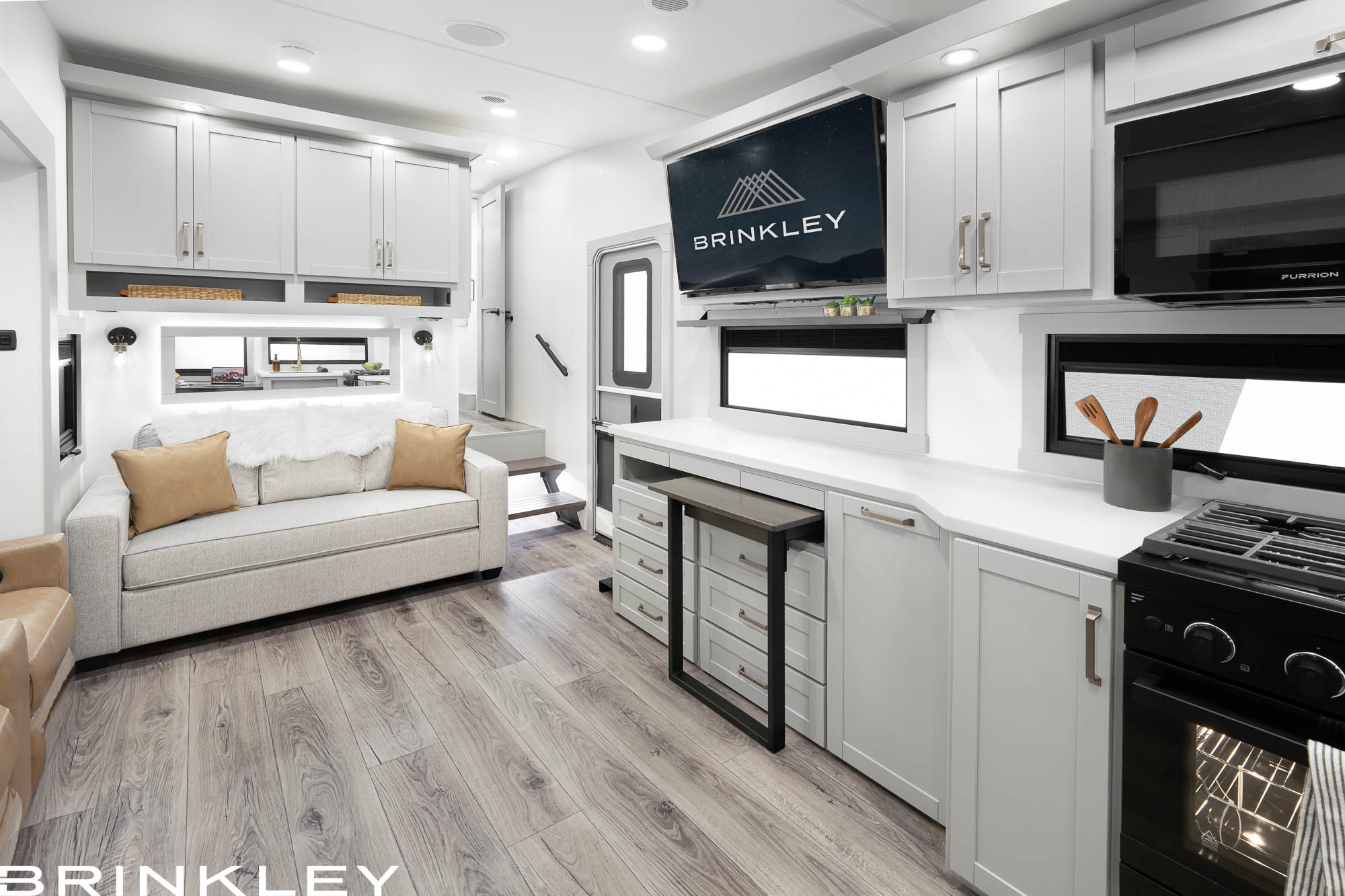

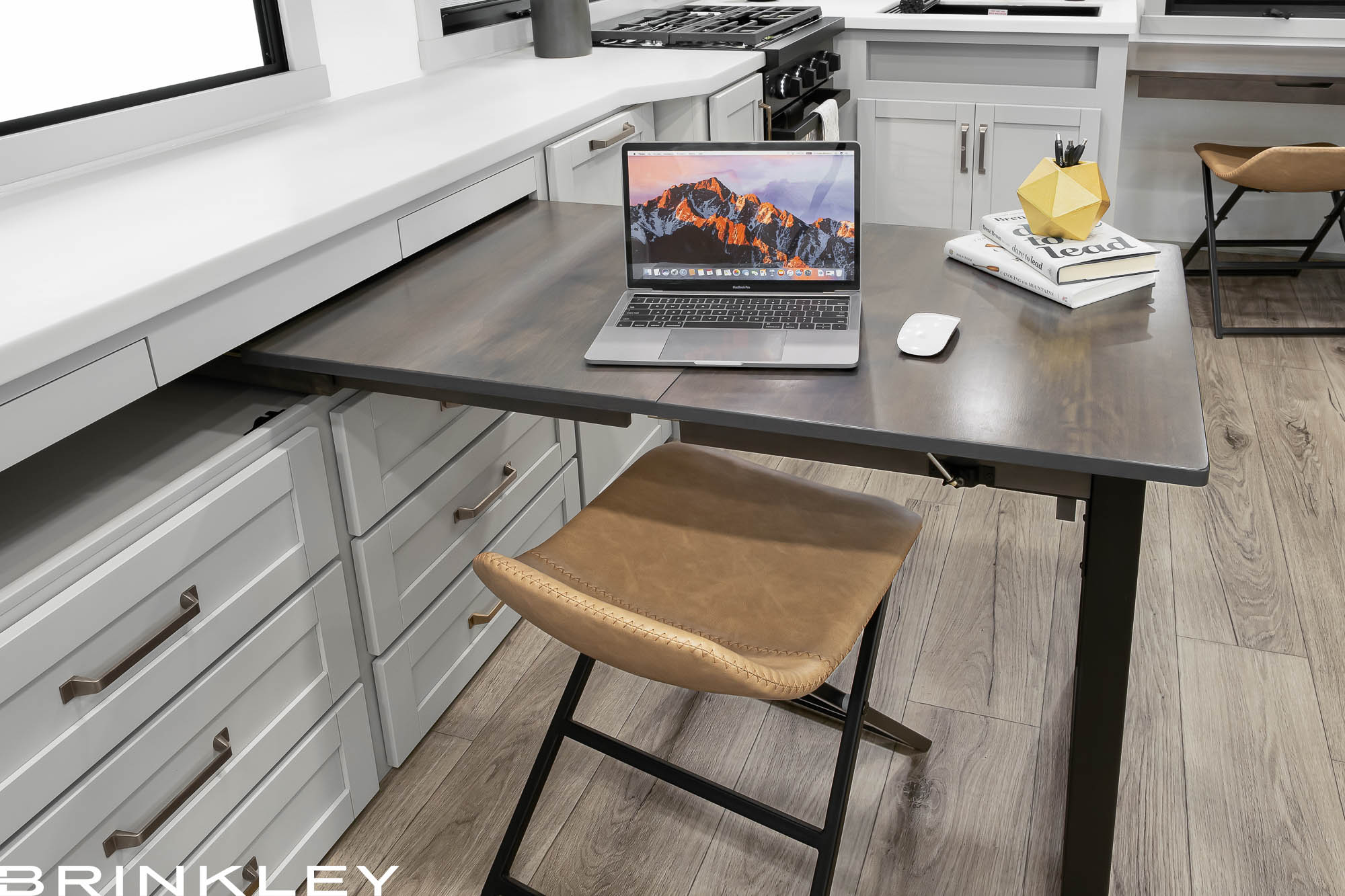

2670 & 2680 Dinesk™: Sliding Desk/Dining Table
Premium Exterior Packages w/ Full-Body Paint

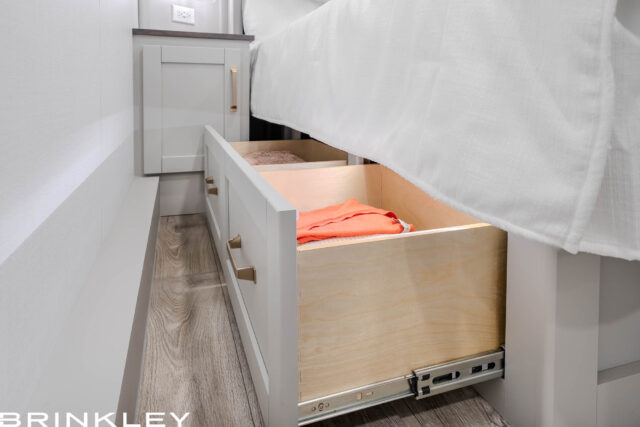

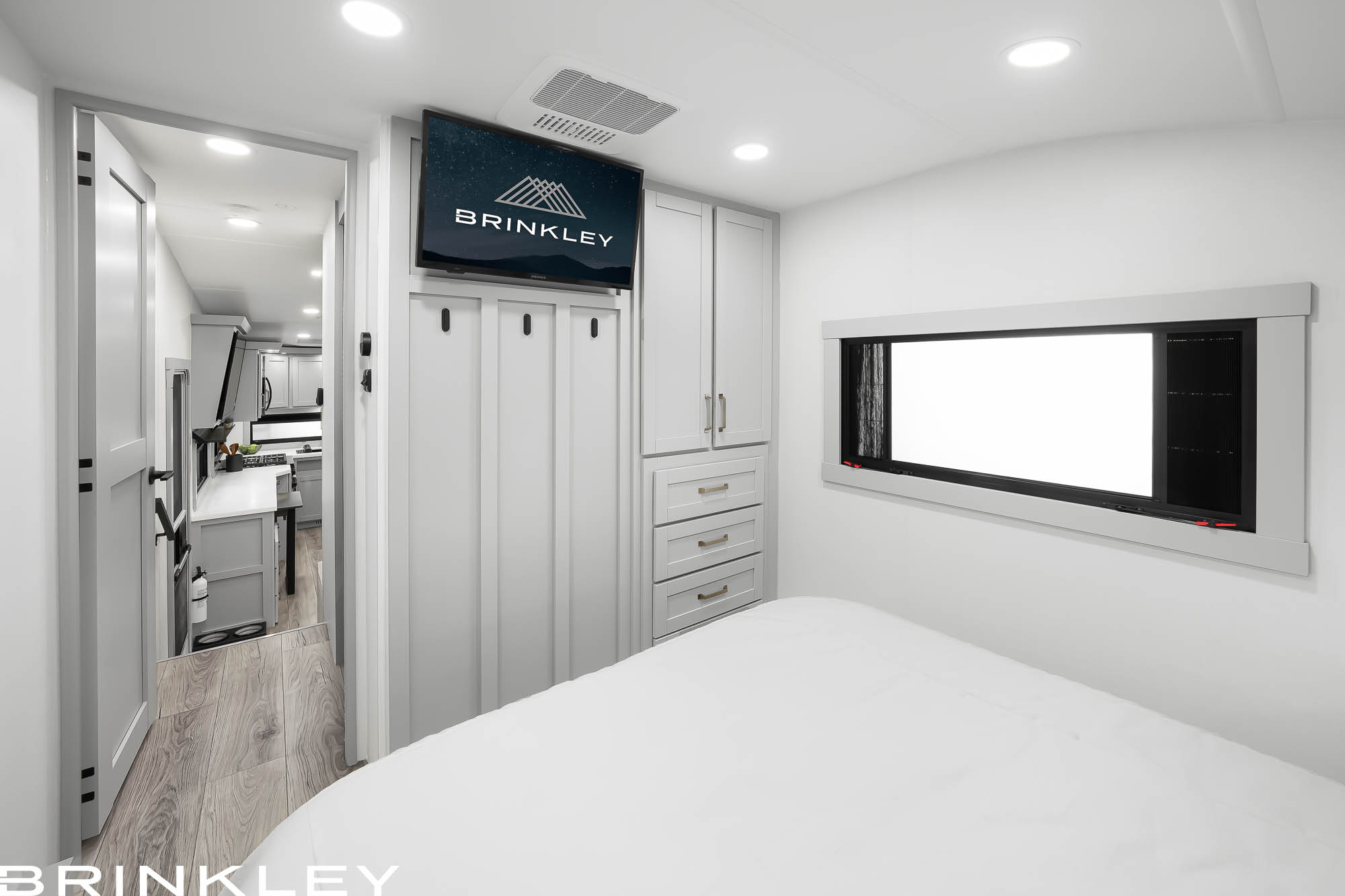

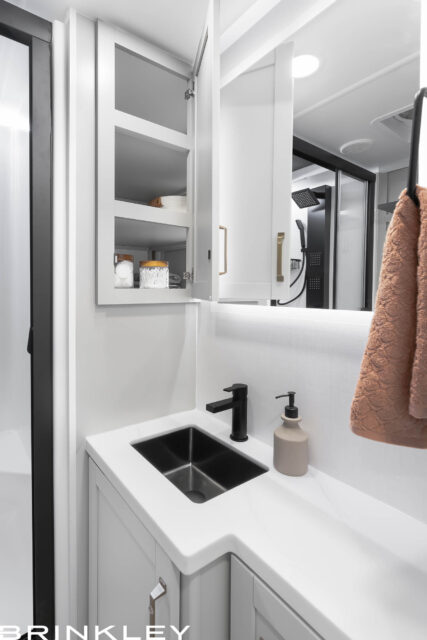

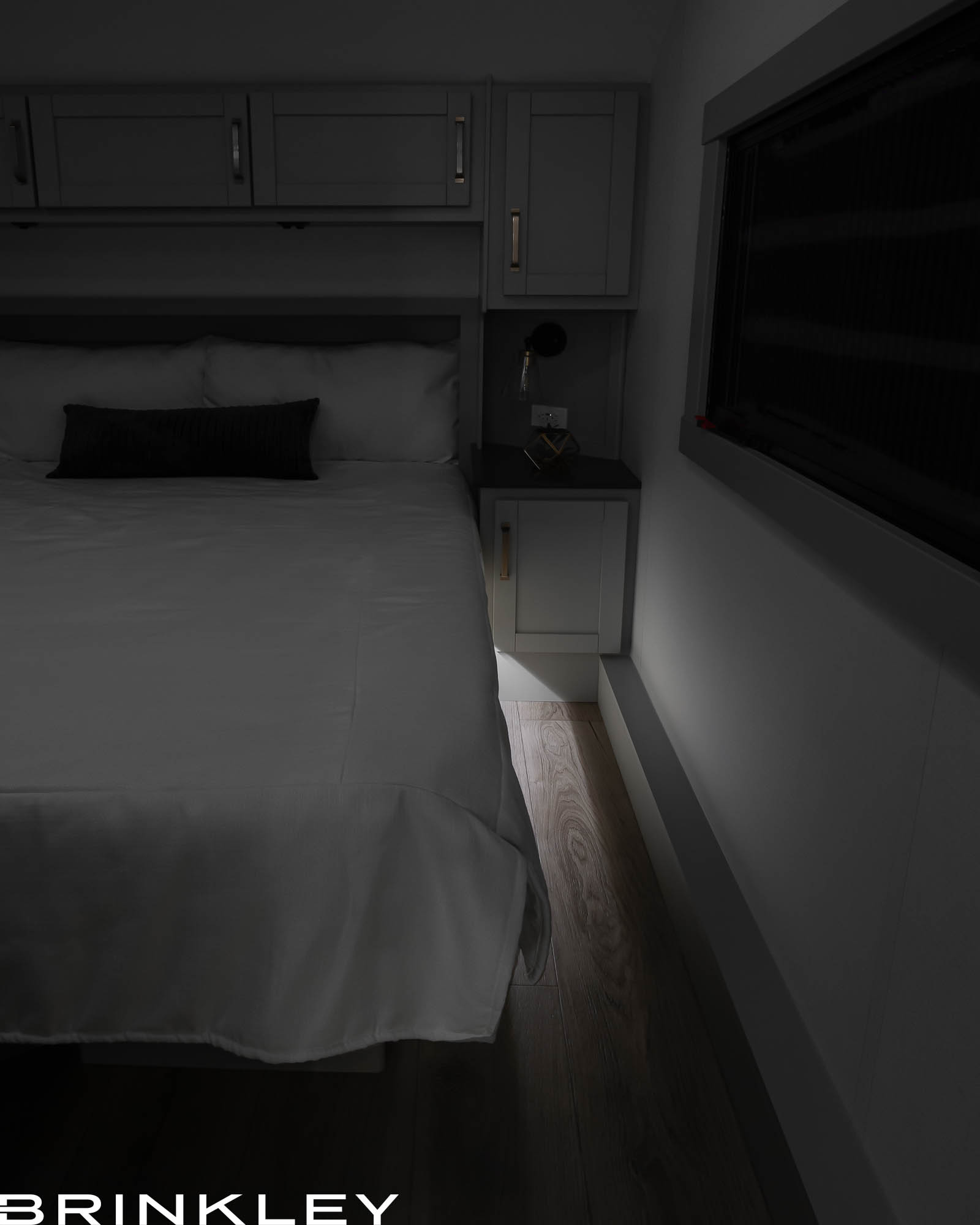

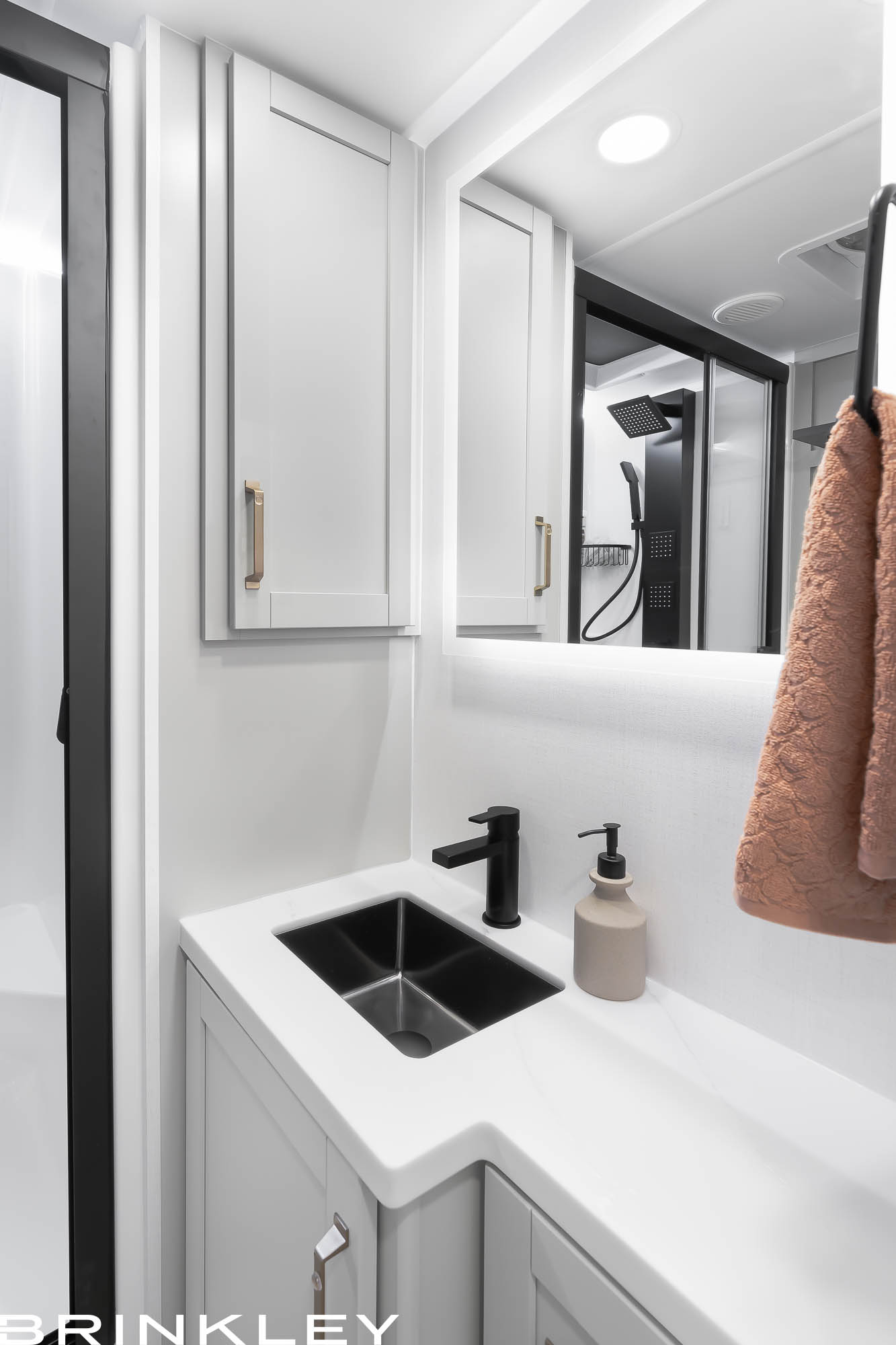

Z 2680 Bedroom & Bathroom

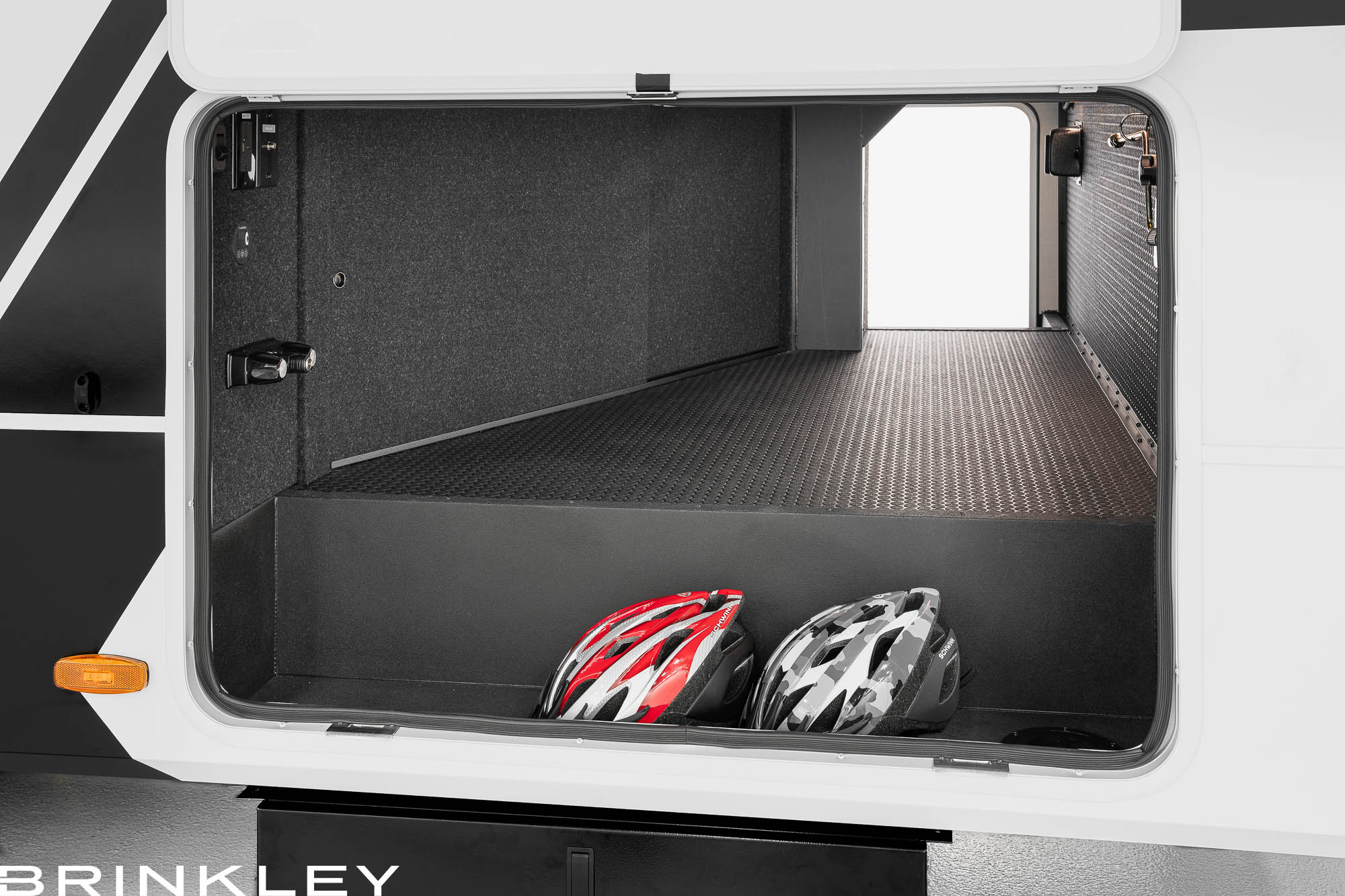

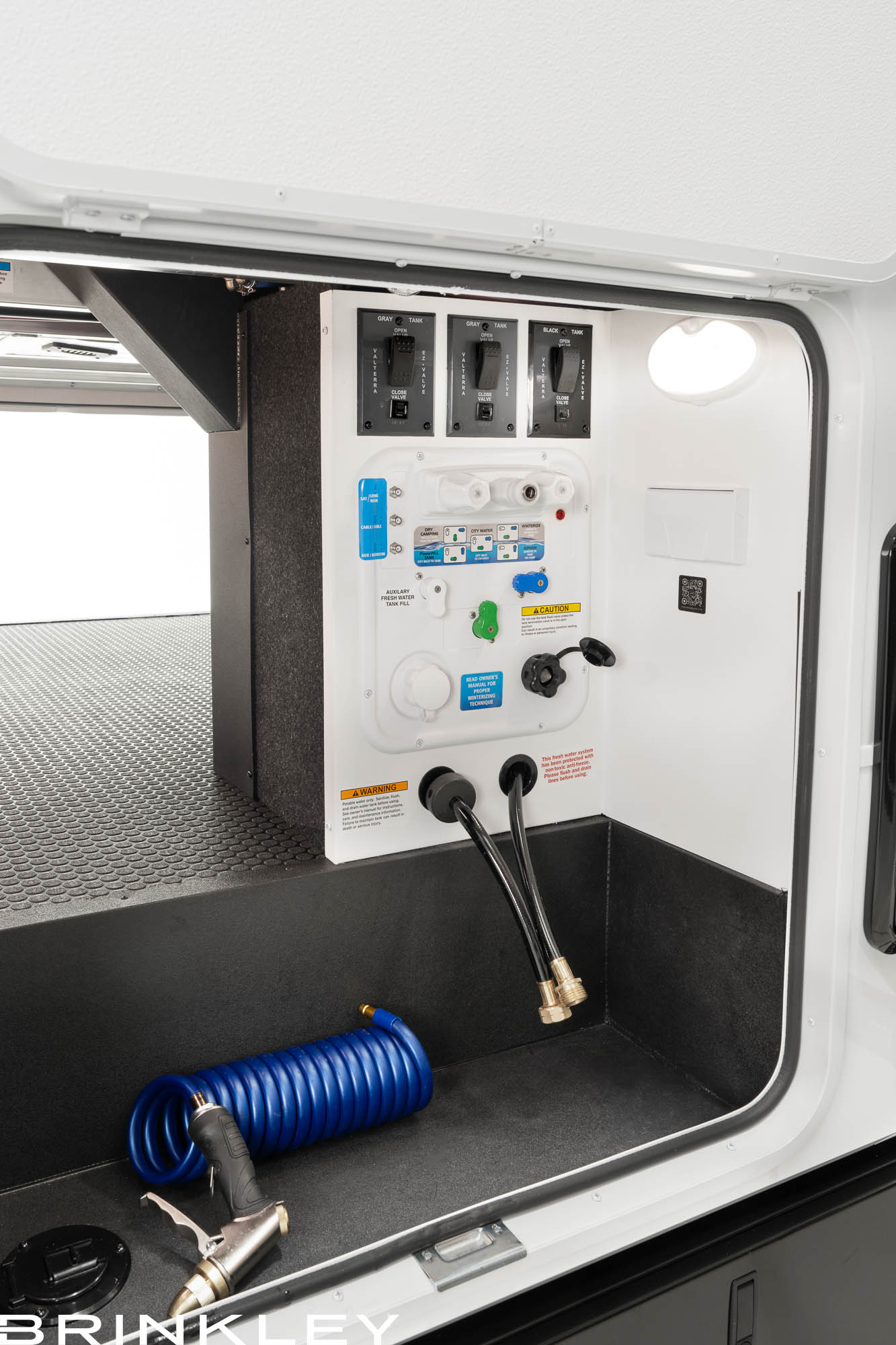

Z 2680 Exterior
Click to expand.
Related Videos
FEATURES
Z 2680 STANDARDS & OPTIONS
Click on a category to expand.
- Standard
- Option
- More Info
- Hot Feature
Chassis & Suspension
Exterior & Storage
Solar, Electrical & HVAC
Plumbing & LP
Interior & Living Spaces
Kitchen
Bathroom
Bedroom
Construction & Warranty
SPECIFICATIONS
Z 2680 Weights, Dimensions, & Capacities
| MODEL Z (FW) | 2680 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 2680 | Title | 1 |
| UVW (lbs.) | 10,978 | 1 | |
| GVWR (lbs.) | 13,995 | 1 | |
| Hitch (lbs.) | 1,952 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 2680 | Title | 1 |
| Axle Rating (lbs.) | Tandem 7k | 1 | |
| Springs Rating (lbs.) | 7k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 2680 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 111 (74 True + 37) | 1 | |
| Black Water (gal.) | 45 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 2680 | Title | 2 |
| Length | 29′ 11″ | 2 | |
| Height | 13′ 2″ | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 90+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 2680 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | n/a | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 2680 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
| MODEL Z (FW) | 2680 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 2680 | Title | 1 |
| UVW (lbs.) | 10,978 | 1 | |
| GVWR (lbs.) | 13,995 | 1 | |
| Hitch (lbs.) | 1,952 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 2680 | Title | 1 |
| Axle Rating (lbs.) | Tandem 7k | 1 | |
| Springs Rating (lbs.) | 7k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 2680 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 111 (74 True + 37) | 1 | |
| Black Water (gal.) | 45 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 2680 | Title | 2 |
| Length | 29′ 11″ | 2 | |
| Height | 13′ 2″ | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 90+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 2680 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | n/a | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 2680 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
Model Z 2680 Fifth Wheels by Brinkley RV
At Under 30 Feet, the Brinkley RV Model Z 2680 Luxury Fifth Wheels are in a class of their own. An automotive exterior with a residential interior, yielding NO COMPROMISE.
Product SKU: BRINKLEY-MODEL-Z-2680
Product Brand: Brinkley RV
Product Currency: USD
Product Price: 107710.00
Price Valid Until: 2027-12-31
Product In-Stock: InStock
