Model Z 2900
MODEL Z 2900

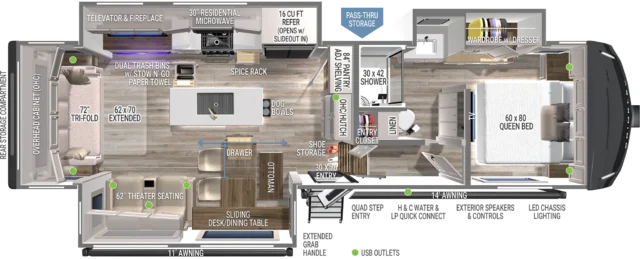

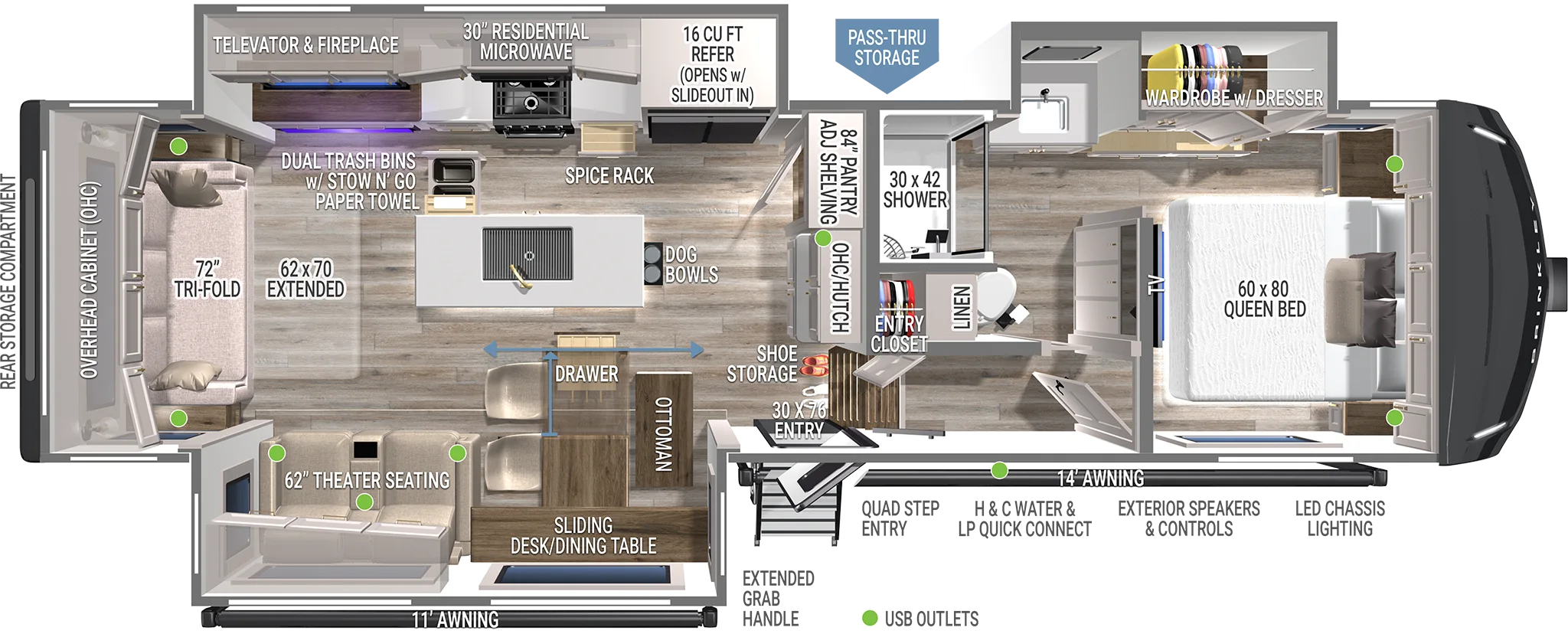

REAR LIVING, GOURMET KITCHEN, walkthrough bath
Standard Run MSRP $122,795
Length
32′ 11″
Height
13′ 3″
UVW Weight
11,985 lbs.
Hitch Weight
2,193 lbs.
GVWR Weight
14,995 lbs.
VIRTUAL TOUR
GALLERY
Z 2900 Interior

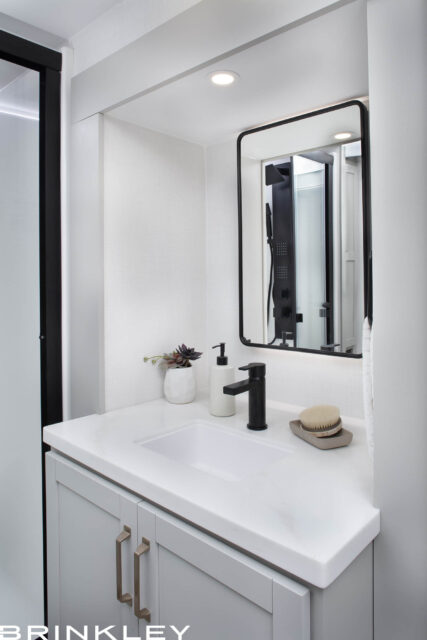

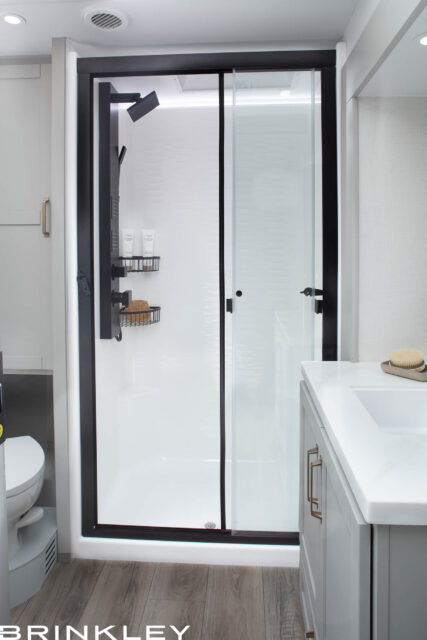

Z 2900 Bedroom & Bathroom

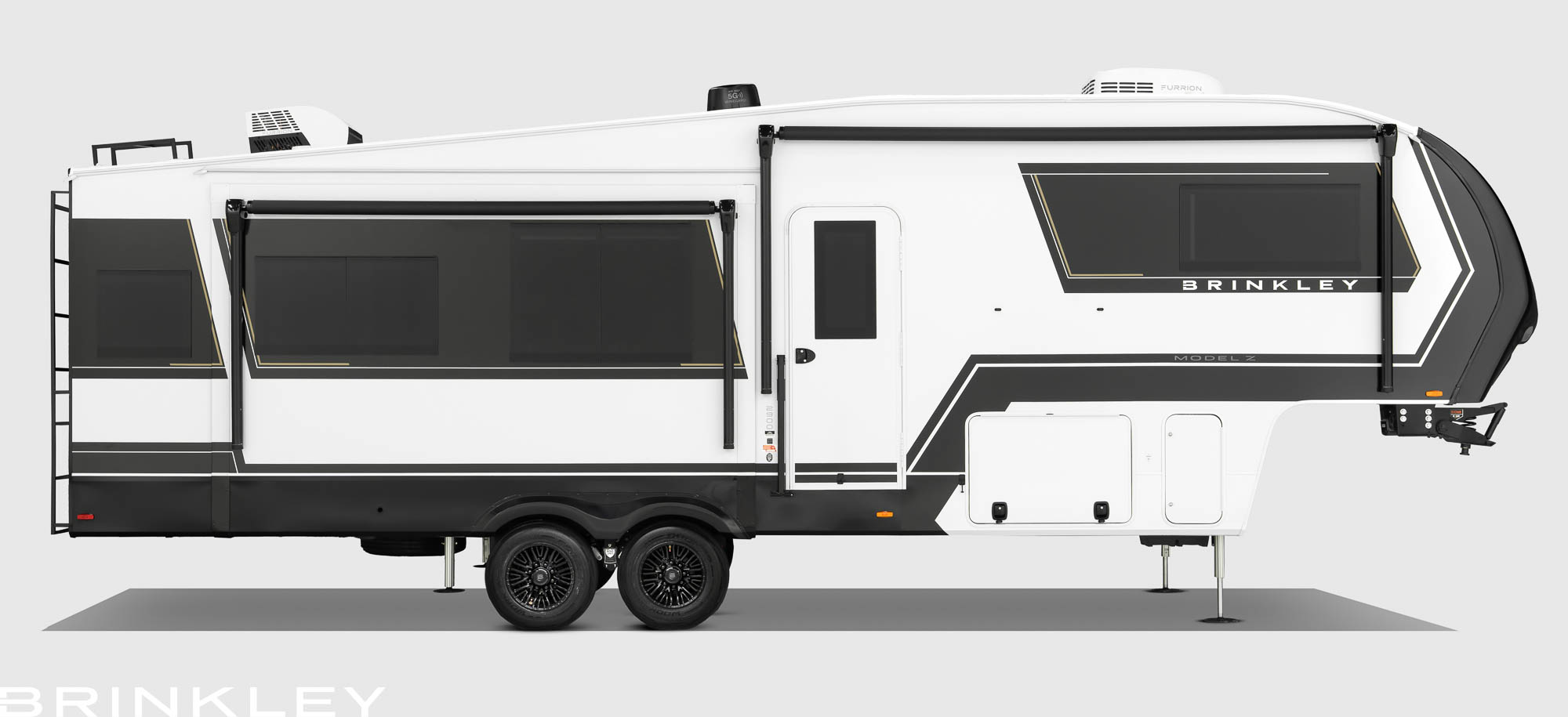

Z 2900 Exterior
Click to expand.
Related Videos
FEATURES
Z 2900 STANDARDS & OPTIONS
Click on a category to expand.
- Standard
- Option
- More Info
- Hot Feature
Chassis & Suspension
Exterior & Storage
Solar, Electrical & HVAC
Plumbing & LP
Interior & Living Spaces
Kitchen
Bathroom
Bedroom
Construction & Warranty
SPECIFICATIONS
Z 2900 Weights, Dimensions, & Capacities
| MODEL Z (FW) | 2900 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 2900 | Title | 1 |
| UVW (lbs.) | 12,095 | 1 | |
| GVWR (lbs.) | 14,995 | 1 | |
| Hitch (lbs.) | 2,151 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 2900 | Title | 1 |
| Axle Rating (lbs.) | Tandem 7k | 1 | |
| Springs Rating (lbs.) | 7k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 2900 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 88 True | 1 | |
| Black Water (gal.) | 44 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 2900 | Title | 2 |
| Length | 32′ 11″ | 2 | |
| Height | 13′ 2″ | 2 | |
| Width | 96″ | 2 | |

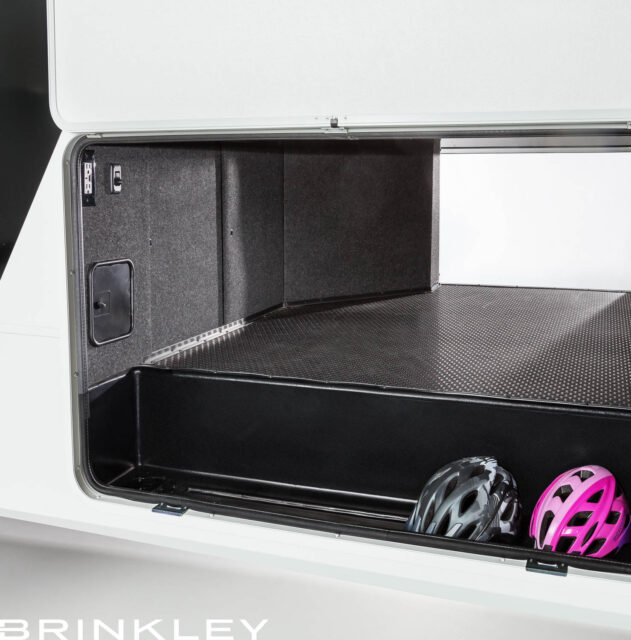

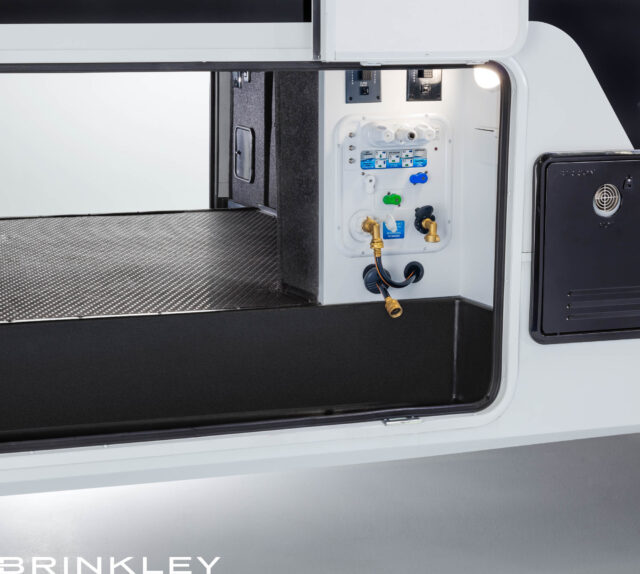

| Cargo Storage (cu.ft.) | 100+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 2900 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | n/a | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 2900 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
| MODEL Z (FW) | 2900 | Line Type | Group |
|---|---|---|---|
WEIGHTS | 2900 | Title | 1 |
| UVW (lbs.) | 12,095 | 1 | |
| GVWR (lbs.) | 14,995 | 1 | |
| Hitch (lbs.) | 2,151 | 1 | |
| Empty | 1 | ||
AXLES & TIRES | 2900 | Title | 1 |
| Axle Rating (lbs.) | Tandem 7k | 1 | |
| Springs Rating (lbs.) | 7k | 1 | |
| Tire & Wheel Size | 215/75 R17.5 | 1 | |
| Tire Load Range | H | 1 | |
| Tire Ply | 16 | 1 | |
| Empty | 1 | ||
TANK CAPACITY | 2900 | Title | 1 |
| Fresh Water (gal.) | 75 | 1 | |
| Gray Water (gal.) | 88 True | 1 | |
| Black Water (gal.) | 44 | 1 | |
| LP (lbs.) | 60 (30+30) Up to 80 | 1 | |
| Empty | 1 | ||
EXTERIOR | 2900 | Title | 2 |
| Length | 32′ 11″ | 2 | |
| Height | 13′ 2″ | 2 | |
| Width | 96″ | 2 | |
| Cargo Storage (cu.ft.) | 100+ | 2 | |
| Empty | 2 | ||
INTERIOR HEIGHT | 2900 | Title | 2 |
| Bath Ceilings | 79.5" | 2 | |
| Bedroom Ceilings | 79.5" | 2 | |
| Bed Slide | n/a | 2 | |
| Main Slide(s) | 76″ | 2 | |
| Empty | 2 | ||
INSULATION | 2900 | Title | 2 |
| Floor R-Value | R40 | 2 | |
| Ceiling R-Value | R40 | 2 | |
| Walls R-Value | R11 | 2 | |
| Empty | 2 |
| UVW | 11,674 lbs. |
| GVWR | 14,495 lbs. |
| Hitch Weight | 2,081 lbs. |
| Axle / Springs Ratings | 7k / 8k lbs. |
| Tire & Wheel Size | 215/75 R17.5 |
| Tire Rating | H-Rated (16-ply) |
| Exterior Length | 32′ 11″ |
| Overall Height | 13′ 2″ |
| Exterior Width | 96″ |
| Interior Bath & Bedroom Height | 79 1/2″ |
| Interior Slide Height | 76″ |
| Fresh Water Capacity | 75 gal. |
Gray Water Capacity  | 90 gal. |
| Black Water Capacity | 45 gal. |
| Floor Insulation R-Value | R40 |
| Walls Insulation R-Value | R11 |
| Ceiling Insulation R-Value | R40 |
Model Z 2900 Fifth Wheels by Brinkley RV
Brinkley RV's Model Z 2900 Mid-Sized Luxury Fifth Wheels are in a class of their own. An automotive exterior with a residential interior, yielding NO COMPROMISE.
Product SKU: BRINKLEY-MODEL-Z-2900
Product Brand: Brinkley RV
Product Currency: USD
Product Price: 119515.00
Price Valid Until: 2027-12-31
Product In-Stock: InStock
